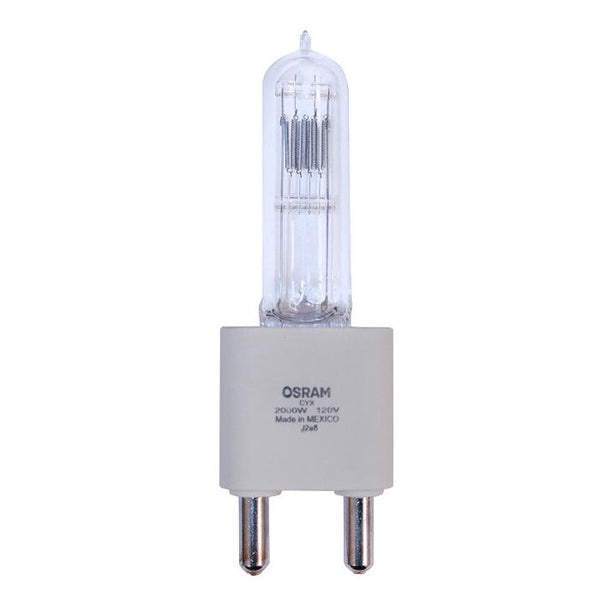

CYX Osram 54613

Osram

$23.75 $22.00
-
+
$22.00
Add to wishlist

CYX Osram 54613

Cross Ref:
CYX Osram 54613
CYX JS120v-2000WC Ushio 1000155
CYX-Q2000T10/4CL 120V 88610 Tungsram GE
CYX VS-CYXD Daylight VisionSmith LED 0095347
CYX VS-CYXT Tungsten VisionSmith LED 0095348
CYX 64790
Q2000T10/4CL
Philips 6994Z
Q2000T10/4CL
Q2000T11/4CL
CYX Philips 318931
2M/G48/18
2M/G48/17
2M/G48/14
CP/41
FKK Osram 54541 220v version - HX2000

Technical Data
General product information
Product Number 54613
Product Name
CYX 120V 6/CS 1/SKU
Ordering Abbreviation CYX
Brand Name OSRAM
General Description
2,000 watt, tungsten halogen, medium to high voltage, single-ended
Application Stage & Studio
Product Remark
s (Operating Position) = Vertical, base down
Electrical data
Nominal Wattage 2000 W
Nominal Voltage 120 V
Type of Current AC
Light technical data
Luminous Flux 55000 lm
Light Center Length - LCL (in) 4.953 in
Light Center Length - LCL (mm) 127 mm
Color Temperature 3200 K
Color Rendering Index 100
Average Rated Life 300 h
Physical attributes
Base G38 Mogul Bipost
Bulb Shape T11
Maximum Overall Length (in) 7.913 in
Maximum Overall Length (mm) 201 mm
Length l (in) 7.913 in
Length l (mm) 201 mm
Length l max. (in) 7.913 in
Length l max. (mm) 201 mm
Diameter d (in) 1.339 in
Diameter d (mm) 34.00 mm
Distance a (in) 4.953 in
Distance a (mm) 127 mm
Filament C-13
Filament Dimensions Length (in) 0.7480 in
Filament Dimensions Length (mm) 19 mm
Filament Dimensions Width (in) 0.787 in
Filament Dimensions Width (mm) 20 mm
Additional product data
Operating Position s 90
Total surface inside 1: appearance (cold) Clear
Class C (gas)
Lamp Type SINGLE END
Packaging information
Product number EAN/UPC
Packaging Quantity
Outside dimensions l x w x h
Gross weight
54613 4008321483263 Unpacked (SKU) 1
54613 4062172061803 Shipping box (Case) 6 11.1in x 10.5in x 8in 6lb

Quantity Per Case: 12

  • L2.0005100 Lamp CYX, 2000W, 3200K, 400 hour, FR 2000 True Blue T2 - True Blue ST2 Open Face
  • ARRI T2 True Blue 2000w Tungsten Fresnel
  • L2.0005100
  • FR 2000
  • True Blue T2
  • True Blue ST2 Open Face
  • Altman ProLine 2000L, 2000L-SM, 2000L-HM, 2000L-PO 7" 2000W Location Fresnel
  • Arena PC
  • ADB 2000W SHF20
  • Altman 2000L & 2000S "Proline"
  • ARRI Apollo 2kW
  • ARRI ARRI Junior 2000
  • ARRI ARRI Studio 2000
  • ARRI ARRI Studio 2000 Theatre
  • ColorTran 2K Studio Fresnel
  • Colortran 176-075
  • De Sisti Leonardo 2kW
  • De Sisti Leonardo Eco 2kW
  • De Sisti Leonardo Piccolo 2kW
  • Despar Leonardo Piccolo 2000 W
  • Ets. Cremer AC 1402 - AC 215
  • Ets. Cremer AC 215
  • Leviton Mfg. Co., Inc. Lighting Management Systems
  • LTM LT 2000
  • LTM Polysun 2000
  • Mole Richardson 8 Jr Solar Spot
  • Mole Richardson 10 Jr Solar Spot
  • Mole Richardson 18 Mole Beam Projector
  • Mole Richardson Molenser Follow Spot
  • Mole Richardson TYPE 8311 2,000 WATT 18" MOLEBEAM
  • Mole Richardson TYPE 6731 2,000 WATT TUNGSTEN PAR
  • Molelipso Mole-Richardson
  • Mole - Richardson 01-300
  • Mole - Richardson Type 4131
  • Mole - Richardson Type 4341
  • Mole - Richardson Type 5291
  • Mole - Richardson Type 5421
  • Narva, Imax H 2000 P
  • Narva, Imax H 2000 S
  • Narva, Imax H 2000 V
  • Niethammer, AVAB HVS 212
  • Pani Ludwig CASTOR 270
  • Pani Ludwig Fresnel 243 BP (ST 2000)
  • Pani Ludwig Mod. 253 H
  • Philips Strand Lighting Bambino 2 Kw
  • Philips Strand Lighting CASTOR 2 Kw
  • Philips Strand Lighting Modell 243, 753, 793
  • Philips Strand Lighting Modell 793 / 253 H
  • Selecon Arena PC
  • Selecon Arena Theatre Fresnel
  • Strand Bambino
  • Strong Tono
  • Century 8ERS
  • Mole Richardson 8 Jr Solar Spot
  • Leonardi 2K
  • LYCIAN Stage Lighting Model 1207 Midget 2K
  • Altman 2000L & 2000S "Proline"
  • Philips Strand BAMBINO
  • 2K Cone
  • 2K Baby Studio 8"
  • 8" Fresnel-TV model
  • HydroPar 2000W incandescent submersible underwater lighting system
  • Fresnel TV8
  • 2kW Television Fresnel 100-525
  • 2000 Watt Junior Combo Solarspot
  • 412 Jr. Solorspot
  • Pacific Grip & Lighting Inc
  • STUDIO JUNIOR 2K COMPLETE
  • 8" JUNIOR 2K COMPLETE, BABY JUNIOR 2K COMPLETE
  • 8" Fresnel-TV model
