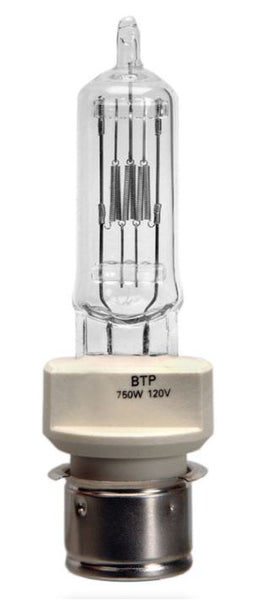

BTP 750W 120V Osram 54688

Osram

Availability36 in stock

VendorOsram

Add to wishlist

/ Osram

Share:

Details

BTP 750W 120V 12/CS 1/SKU OSRAM 54688

Discounts available, depending on quantity .....
Call 516.766.2266 - or - E-mail: Quotes@ALLBULBS.com

Cross Ref:
BTP, JCS120V-750WC Ushio 1000086
BTP 120V 12/CS 1/SKU OSRAM 54688
Secondary cross to:
BTN Q750T7/CL/2P Osram 54687
BTN, JCS120V-750WB Ushio 1000085
BTN Q750T7/CL/2P 120 88605 GE Tungsram
Atlas/Thorn HX17
Atlas/Thorn T/17
Bulbrite BTN
Colortran 176-167
Grainger 6VN47

OSRAM Technical data
Product Number 54688
Product Name BTP 120V 12/CS 1/SKU
Ordering Abbreviation BTP
Brand Name OSRAM 54688
General Description 750 watt, tungsten halogen, medium to high voltage,
single-ended
Application Stage & Studio
Product Remark _
s (Operating Position) = Vertical, base down
Electrical data
Nominal Wattage 750 W
Nominal Voltage 120 V
Type of Current AC
Light technical data
Luminous Flux 20000 lm
Light Center Length - LCL (in) 2.165 in
Light Center Length - LCL (mm) 55.5 mm
Color Temperature 3200 K
Color Rendering Index 100
Average Rated Life 200 h
Physical attributes
Base P28s Medium Prefocus
Bulb Shape T7
Maximum Overall Length (in) 4.953 in
Maximum Overall Length (mm) 127 mm
Length l (in) 4.953 in
Length l (mm) 127 mm
Length l max. (in) 4.953 in
Length l max. (mm) 127 mm
Distance a (in) 2.165 in
Distance a (mm) 55.5 mm
Filament C-13D
Additional product data
Product datasheet
May 20, 2021, 23:24:14 2021, OSRAM GmbH. All rights reserved.
Page 2 of 3
Operating Position s 90
Total surface inside 1: appearance (cold) Clear
Class C (gas)
Lamp Type SINGLE END
Packaging Information
Product number EAN/UPC Packaging Quantity Outside dimensions l x w x h Gross weight
54688 0046135546884 Folding box (SKU) 1
54688 10046135546881 Shipping box (Case) 12 9.8 in x 7.4 in x 8.5 in 3.8 lb

Quantity per Case: 12

Product features and benefits

Robust construction for reliable, lasting performance
Consistent color over the life of the lamps
Instant on and nearly constant luminous flux over the life of the lamp
Broad product portfolio supporting the stage and studio markets
Dimmable with traditional amber shift

APPLICATIONS

Fresnel
BTP BTN bulb. Applications: projection.
Cross Reference: Industry

Areas of application

Stage and theatre
Studio, TV and film
Professional Photography
Club & Disco
