Hog 4-18 control console in road case, US power cable - ETC 6102A1002-US POA
Previous Product Next ProductETC Lighting
36 in stock
ETC Lighting
Hog 4-18 control console in road case, US power cable - ETC 6102A1002-US
Discounts available, depending on quantity .....
Call 516.766.2266 - or - E-mail: Quotes@ALLBULBS.com
Ships with: Road case Two blue/white desk lamps Two USB flash drives for show storage and console recovery Dust cover Alphanumeric keyboard Three active display port to DVI adapters IEC power cable(s) Capture (Quartet) lighting design software.
Category: Entertainment Controls > Hog 4 Family > Hog 4-18
Get yourself connected. With 16 universes of onboard processing, 8 local DMX outputs, 3 external touchscreen ports, USB galore, PSE HogNet / FixtureNet ports, SMPTE and MIDI — you’re ready for whatever gets thrown at you.

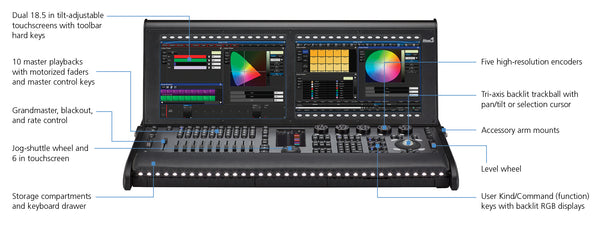

Product Features
- Robust Hog 4 OS operating system
- 5 high-resolution parameter encoders
- Built-in tri-axis backlit trackball with cursor and parameter control functions
- 10 master playbacks with motorized faders and master control keys
- Dual 18.5” multi-touch screens, tilt adjustable
- Up to three external display port monitors, with touch or multi-touch
- 8,192 output channels, expandable with DP8K processors
- 8 Neutrik XLR-5 DMX outputs
- sACN and Art-Net
- MIDI In, Out and Thru
- Dual EtherCON connections for HogNet and FixtureNet
- Integral keyboard drawer and storage drawer
- Accessory arm mounts, one arm and VESA mount bracket included
- Two blue/white desk lamps included
- Capture Lighting Design Software, Quartet
Electrical
- ETL, CETL and CE compliance
- Mains power: 100-250VAC, 50/60Hz, max 120W
- Mains connector: IEC320 C13
- Fuse: 1x 5x20mm 5AT fuse
Connectivity
- Local DMX-512 outputs: 8x Neutrik 5-pin XLR
- Expandable DMX-512 outputs via USB DMX Widgets
- Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
- Local HogNet 1GB/s Ethernet port
- Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
- LTC/SMPTE input via 3-pin XLR
- MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
- Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
- Unrestricted connectivity to visualizers via encrypted Fixture-Net Visualizer Stream. (Art-Net and sACN to visualizers also supported but restricted by system’s total output capacity)
- OSC (Open Sound Control) for remote control and integration
- USB 2.0 ports: 6 rear / 2 drawer
Weights and Dimensions
- Width: 994mm / 39.1”
- Depth: 746mm / 29.4”
- Height (Monitor Up): 430mm / 16.9”
- Height (Monitor Down): 169mm / 6.7”
- Weight: 42kg / 92lb
