ETC Theatre Film Studio Lighting

Full Boar 4 console in Keal road case - ETC 61020005

Previous Product Next Product

ETC Lighting

Availability36 in stock

VendorETC Lighting

Add to wishlist

/ ETC / Lighting Console

Share:

Details

Full Boar 4 console in Keal road case - ETC 61020005

Discounts available .....
Call 516.766.2266 - or - E-mail: Quotes@ALLBULBS.com

Category: Entertainment Controls > Hog 4 Family > Full Boar 4

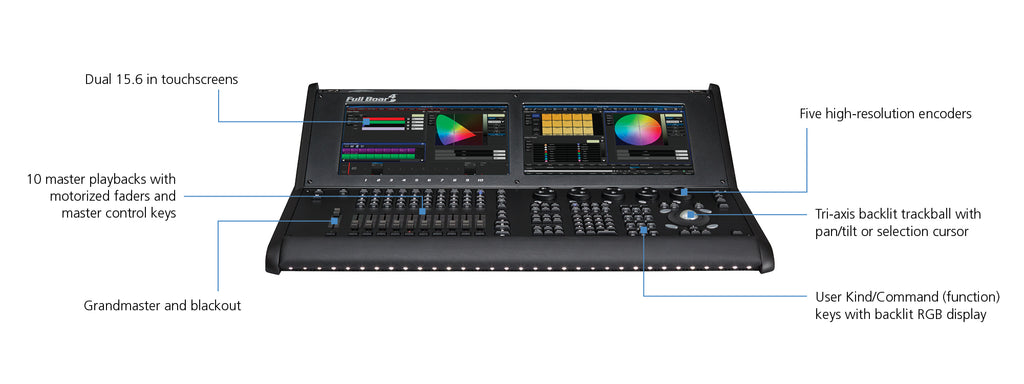

The Full Boar 4 is versatile enough to handle everything from a corporate show to a full stadium gig. The console offers all the power of the flagship Hog 4, but in a more compact and affordable package with sleek lines, raked screens, and that familiar Hog layout.

Full Boar 4 provides two 15.6” multi-touch monitors and two additional video outputs. Four onboard DMX universes drive the rig, and two gigabit Ethernet ports are included for Art-Net, sACN and console networking. Full Boar 4 satisfies the demanding programmer and brings the package in on budget.

With 12 universes of onboard processing, four local DMX outputs, two external touchscreen connections, USB and HogNet / FixtureNet ports, SMPTE and MIDI — what goes on tour connects on tour!

Product Features

Robust Hog 4 OS operating system
Hog-Net etherCON connector
Fixture-Net etherCON connector
Unlimited simultaneous crossfades
Internal solid-state hard drive
Two internal 15.6-inch 10-point touchscreens
Up to two external DisplayPort monitors/touchscreens supported
10 motorized playback faders
Motorized Grand Master
Dedicated DBO toggle key
Five expanded-wheelset encoders
12 user-assignable function keys with associated LCD
Tri-axis backlit trackball with rotary encoder and four configurable buttons
Kensington security slot
Integrated dimmable white lap work light
Integrated dimmable blue vent light
Two dimmable white/blue desk lights included
Two USB flash drives for show storage and console recovery included
Dust cover included
Custom road case included
Compliance: ETL, CETL, CE
Capture Lighting Design Software, Quartet

Connectivity

Local output processing: 12x universes (6144 output channels)
Local DMX-512 outputs: 4x Neutrik 5-pin XLR
Expandable DMX-512 outputs via USB DMX Widgets
Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DP8Ks
LTC/SMPTE input via 3-pin XLR
MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/sACN, unrestricted by local output capacity)
OSC (Open Sound Control) for remote control and integration
Supports USB playback and expansion Wings
USB 2.0 ports: 4 rear
USB 3.0 ports: 1 top

Electrical

Mains power: 100-250VAC, 50/60Hz, max 110W
Mains connector: IEC320 C13
Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions

Width: 902mm / 35.5"
Depth: 610mm / 24.0"
Height: 244mm / 9.6"
Weight: 20.4kg / 45lb
