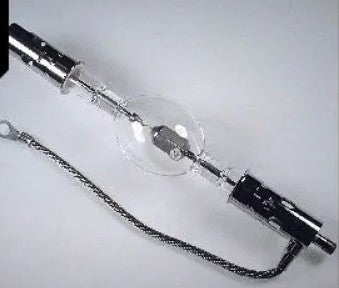

UXL-30SC 3000w - Ushio 5001079

Ushio

Availability13 in stock

VendorUshio

/ CINEMA XENON / Light Bulbs / Metal Halide / NEC / UHI UMI UMR USR Ushio / USHIO / Ushio Xenon Short Arc / UXL / Xenon Arc Cinema

Share:

Details

UXL-30SC 3000w - Ushio 5001079

ALL BULBS will match or beat all current competitor prices!
Discounts available, depending on quantity .....
Call 516.766.2266 - or - E-mail: Quotes@ALLBULBS.com

Cross Ref: Analog:
XBO 3000W/HS XL Osram 69479
XM3000HS/R ASL
YXL-30SC / YXL-3000C10 Yumex / YXL-30SCFS
UXL-3000FS Xe 3000W - Ushio 5001064
UXL-30SC Xe 3000W - Ushio 50001079
LTIX-3000W-HS LTI
STRONG Int'l 3130221 3130223 3130284
CXL-30SC CHRISTIE
CXL-3000w-HEHS CHRISTIE
SQP-SX30002 SX30001 Superior Quartz
LTIX-3000W-HEHS LTI
LTIX-3000W-HS LTI
XH3000/HS Hanovia
XQ3KW
LIN-XQ3KW
TBS3000W/HS
CH3000HS CHRISTIE
LYXL30SCFS-Y

Cross Ref: DIGITAL:
XBO 3000w/DHS Osram 69462
XD3000HS/R DIGITAL ASL
DXL-30BA
DXL-30BA/L
XDC-3001B

Application Cinema Film Projection, Sky Tracker / Se
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 80000
Base Special Double Ended
Base Anode SFAX27-9.5
Base Cathode SFA27-7.9
Warranty Hours 2200
Bulb T60
Class C (gas)
Cooling Required
Current (A) 90
Current Control Range (A) 70-100
Diameter d (in) 2.362
Diameter d (mm) 60
Distance a (mm) 145
Electrode Gap (cold) (mm) 5.5
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 max. (mm) 342
Length l2 max. (mm) 302
Light Center Length - LCL (mm) 145
Luminous Area w x h (mm) 1.5 X 4.5
Luminous Intensity (cd) 10000
Maximum Base Temperature ??C 230
Maximum Overall Length - MOL (mm) 342
Nominal Voltage (V) 28
Nominal Wattage (W) 2500
Operating Position S30 P30
Reflector Coating 60
Type of Current DC

Quantity Per Case: 1

Strong Super Lume-X
Strong Super 80 4000-02, 40000-04
Strong X-90 Console
Strong Xenon Gladiator
2.5kW SPACE CANNON
Gladiator II STRONG (DO NOT USE XBO 2500w/HS)
Strong Gladiator IV
Space Cannon 2.5KW

Quantity Per Case: 1

pigi Xenon Projector 5/7K E/T/C AudioVisuel
Strong Ultra 80
NEC NC2500S NC3240S
NEC NC3200S NC1600C NC2000C
7KW Sky Dancer L.P. Associates
7KW XELAMP Architectural Spot L.P. Associates
Silverbeam PSL-20 7K Xenon Phoebus Manufacturing
Silverbeam 360 7KW Phoebus Manufacturing
Syncrolite SS7K
Syncrolite SX7K
Syncrolite SXB-8/2
Space Cannon Illumination PGIG Xenon Projector 70Kw
Space Cannon Illumination 70Kw

XENON SHORT ARC - UXL

Watts Code Lamp Amps Volts(V) MOL(mm) LCL(mm) Dia(mm) ArcGap(mm)
300w 5000343 UXL-300D-O, Xe 300W 15A 20V 175 25Dia 2.6 1000Hrs
300 5000346 UXL-302-O, Xe 300W 15 20 174 85 25 2.6 900Hrs
350 5000350 UXL-351E-O, Xe 350W 16 22 133 66.5 22 2.9 1000
500 5000360 UXL-500D-O, Xe 500W 25 20 234 95 29 4 1500V
550 5000368 UXL-553, Xe 550W 25 22 161 65 30 3.1 1500
1000 5001075 UXL-10SB, Xe 1000W 50 20 245 98.5 40 4.2 1500
1000 5002060 UXL-10S, Xe 1000W 50 20 245 98.5 40 4.2
1000 5002223 UXL-10SCB, Xe 1000W 55 20 233 40 4.2 2000
1600 5001076 UXL-16SB, Xe 1600W 65 22 245 98.5 46.5 4 1500
2000 5000336 UXL-2000HA, Xe 2000W 80 25 370 145 52 6 2000
2000 5001062 UXL-20FS, Xe 2000W 80 25 342 147 60 6 2000
2000 5001063 UXL-2000FS, Xe 2000W 70 29 370 145 55 6 2000
2000 5001434 UXL-20SC, Xe 2000W 85 29 342 147 60 5.5 2400
2500 5001077 UXL-25SC, Xe 2500W 90 28 342 147 60 6 1500V
3000 5001064 UXL-3000FS, Xe 3000W 100 30 428 171 70 7 1200
3000 5001079 UXL-30SC, Xe 3000W 110 30 342 147 60 6 1500
4000 5000631 UXL-40SC, Xe 4000W 150 29 410 174.5 70 7 1200
6000 5000943 UXL-60SC, XE6000W 170 37 433 176 80 9 600
7000 5000634 UXL-70SC, Xe 7000W 170 42 433 171 80 10 500
