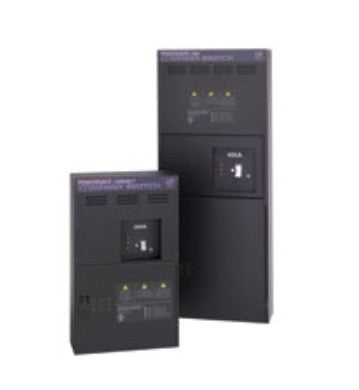

PSC-100 PowerSafe Compact 100A - ETC 7158A1101 POA

ETC Lighting

1 in stock

ETC Lighting

$0.00
-
+
$0.00
Add to wishlist
Tags: /

PSC-100 PowerSafe Compact 100A 7158A1101 POA

Discounts available, depending on quantity .....
Call 516.766.2266 - or - E-mail: Quotes@ALLBULBS.com

Quantity Per Case: 1

PowerSafe Pro and PowerSafe Compact both feature:

  • 100% rated breakers
  • Safety locking handle prevents accidental unlocking of cover
  • Shunt trip safety interlock
  • Provides 65,000A SCCR (Short-Circuit Current Rating)
  • ISO ground allows field configuration of isolation between enclosure ground and equipment ground
  • Output connections accommodates single-pole Cam-style connectors and up to 4/0 class K cables using 500kcmil screw terminal
  • LED power indicators light up for proof that power is on/available between each phase and neutral
  • Lockout/tagout point for breaker accepts third-party locks on built-in brackets for support of NFPA 70E procedures
  • Rugged 16-gauge steel and scratch-resistant paint
  • UL and cUL Listed

PowerSafe Pro features:

  • Available at 120/208V: 100A, 200A, or 400A breaker options
  • 3-phase, 5-wire double neutral (supports 200% rated neutral) plus ground
  • Magnet latch to hold interior covers open during termination of bare end tie-ins
  • Lift-up cover for lug access
  • LED work light illuminates interior connectors and output lugs

PowerSafe Compact features:

  • Available at 120/208V: 100A, 200A breaker options
  • 3-phase, 4-wire plus ground
  • Designed to minimum footprint, while allowing required wire-bend radius and internal spacing
  • Locks unwanted access to hinged CAM and tail covers over all connections while door is closed
