CS20 - ColorSource 20 console - ETC 7225A1000-US

Discounts available, depending on quantity .....
Call 516.766.2266 - or - E-mail: Quotes@ALLBULBS.com

Ships with: Power Supply

Category: Entertainment Controls > ColorSource Console > ColorSource non-AV

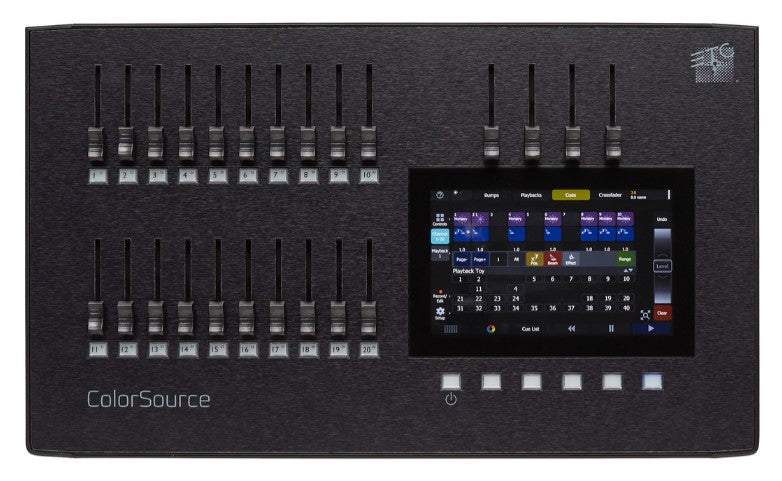

ETC ColorSource 20 console

COLORSOURCE 20 - 40 channels / multi-parameter devices - 20 Channel / Playback faders with color indication - One DMX/RDM port - One USB port - 2GB onboard storage for show files

Available in two sizes with optional audiovisual and ethernet capabilities, ColorSource consoles provide hands-on control designed for the latest technology.

These affordable, portable desks specialize in streamlined, plug-and-play setup; the console recognizes intelligent lights in the rig via RDM and auto-populates them in patch, and the on-board touchscreen allows fixtures to be dragged into place on a customizable stage map for quick selection and programming.

The faders and touchscreen can be used to control moving lights, mix LED colors, play stored looks and effects and - with the AV consoles -play sound and visual media.

Ships with:  console and power supply

APPLICATIONS

• One-off events
• Corporate theaters
• Touring productions
• School auditoriums/theaters
• Community theaters
• Houses of worship
• Small TV studios
• Tradeshows

SPECIFICATIONS:

MECHANICAL

• One home and five configurable softkey buttons
• Four configurable function faders
• 7” color multi-touch touchscreen PLAYBACK CONTROLS
• One cue list with 999 cues
• 10 pages of 20 or 40 playbacks - Static memories or sequences
• Playback Toy for filtered and timed execution of playbacks
• Mulitple bump modes (Flash, Solo, Solo Change, Move/Go)
• Full-history rubberbanding for playbacks
• On-board help system
• On-board start-up tutorial videos
• Extensive library for controlling moving lights MEDIA
• Audio input type: - 3.5mm (1/8”) TRS, Stereo, unbalanced - Line in -10dBV (316mV RMS) - Input Impedance: 29k ohms
• Audio output type: - 3.5mm (1/8”) TRS, Stereo, unbalanced - Line out -10dBV (316mV RMS) at 10k ohms “Line Level” - Load Impedance : 10k – 200k ohms
• Supported media file formats: - Audio: mp3, aac and wav files (44.1kHz sample rate, 4GB maximum file size) - Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution)

Please note: visual output is limited to still images and effects from the VideoToy feature of the ColorSource AV console. Movie files are not supported

PROGRAMMING TOOLS

• 40 programmable color chips and color picker
• Innovative touch-based parameter controls
• Auto fixture selection on fader moves
• Virtual Level/Rate wheel
• Cutomizable Channel display using Stage Map
• Effects (intensity, color, shape, and parameter)
• Fixture Tags for Quick Selects
• 27 Quick Select groupings
• Two independent channels
• Virtual keypad for level entry

UNIQUE FEATURES

• COLORSOURCE 20 - 40 channels / multi-parameter devices - 20 Channel / Playback faders with color indication - One DMX/RDM port - One USB port - 2GB onboard storage for show files
• COLORSOURCE 40 - 80 channels / multi-parameter devices - 40 Channel / Playback faders with color indication - One DMX/RDM port - One USB port - 2GB onboard storage for show files
• COLORSOURCE 20 AV - 40 channels / multi-parameter devices - 20 Channel / Playback faders with color indication - Two DMX/RDM ports - Two USB ports - RJ45 for network (sACN, ArtNet, OSC) - Sound-to-light playback - HDMI® port for monitor or media playback - “Amigo” browser-based remote - 25GB onboard storage for show files and media
• COLORSOURCE 40 AV - 80 channels / multi-parameter devices - 40 Channel / Playback faders with color indication - Two DMX/RDM ports - Two USB ports - RJ45 for network (sACN, ArtNet, OSC) - Sound-to-light playback - HDMI port for monitor or media playback - “Amigo” browser-based remote - 25GB onboard storage for show files and media

ORDERING INFORMATION

ColorSource Consoles

MODEL PART NUMBER DESCRIPTION

• CS20 7225A1000-US 20 Fader ColorSource console (40 Channels or Devices )
• CS40 7225A1001-US 40 Fader ColorSource console (80 Channels or Devices)
• CS20AV 7225A1100-US 20 Fader ColorSource AV console with network, audio, and video features (40 Channels/Devices)
• CS40AV 7225A1101-US 40 ColorSource AV console with network, audio, and video features (80 Channels or Devices)

ColorSource Accessories

MODEL PART NUMBER DESCRIPTION

• CS20DC 7225A4020 Dust cover CS20 and CS20AV
• CS40DC 7225A4021 Dust cover CS40 and
• CS40AV CS20RK 7225K1002 19” Rack mount kit for CS20 and CS20AV consoles
• I1865 Pelican Case with foam for CS20 and CS20AV consoles
• I1866 Pelican Case with foam for CS40 and CS40AV consoles
• 7225A2020-US Replacement Power supply (Edison connector)
